Online monitoring of buildings, objects and structures

Real-time building monitoring for continuous deformation measurement

Building projects can have an impact on items such as surrounding buildings, objects, and structures. The consequences may be subsidences, vibrations, movements, and deformations. Continuous online monitoring provides the most effective solution to evaluate this impact. Data will be registered real-time and includes parameters such as vibrations, sounds, deformations and water levels. When deformations occur outside the pre-set values our software will emit direct notifications.

Continuous monitoring of deformations by means of the most recent Trimble systems

Our brand-new Trimble S8 HP 0.5 mm devices and the Trimble 4D control software allows us to carry out any type of online monitoring project. Our equipment allows us to meet the strictest demands in contract documents and insurance company requirements.

Check out our monitoring projects >

The advantages of online monitoring systems:

  • Monitoring is available 24/7.
  • Any deformations will be reported to you immediately by email & text messages.
  • It is cheaper than traditional monitoring in long-term high-risk projects.
  • No evening/weekend surcharges by land surveyors.

Applications of continuous monitoring:

  • Building monitoring
  • Bridge monitoring
  • Storage tank monitoring
  • Retaining wall monitoring
  • Gas pipe and other pipe monitoring
  • Dyke body monitorin

Do you need more information on online monitoring?

Would you like to receive more information on online monitoring or a tour on one of our online monitoring projects with explanation? Do feel free to contact us.

Online monitoring of buildings


Geoservice B.V. projects

At Geoservice B.V. we are highly experienced in online monitoring systems and projects. By now, we have completed many national and international projects successfully. Below you will find more information on some of our projects:

Online monitoring of Mirador Embalse dam in Leon Spain

Dam monitoring Spanje For a period of one year, Geoservice B.V. monitored the Mirador Embalse reservoir dam by installing 100 prism reflectors all over the dam. As such, the deflection of the wall could be measured in various critical parts of the dam. It is essential to guarantee safety during maintenance and exploitation of the dam.
  • Observe horizontal dam relocation
  • Observe vertical dam relocation
  • 1 fully automatic Total Station / continuous measuring system

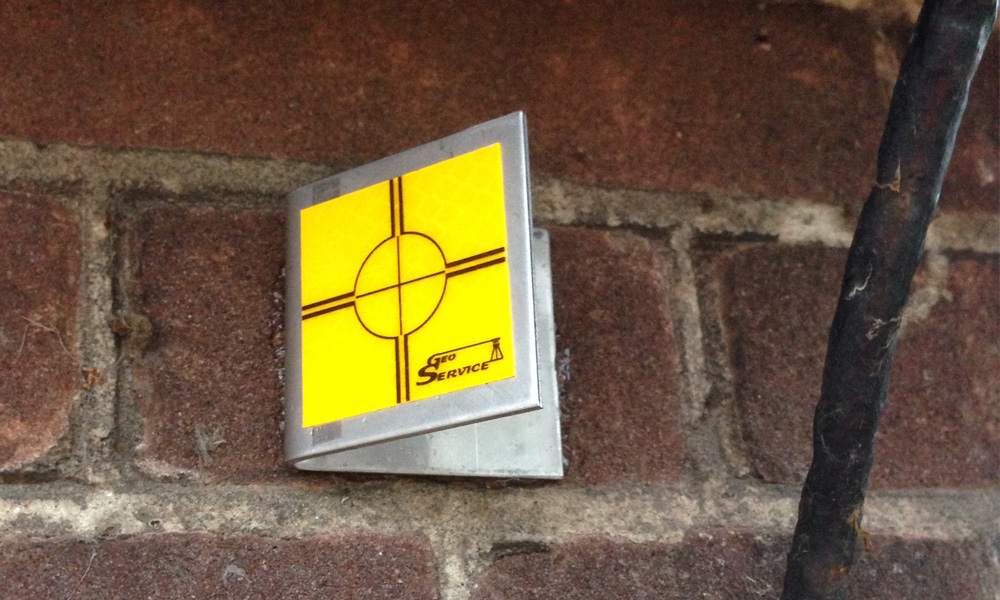

  • Continuous monitoring of about 100 prism reflectors
  • Automatic alerts (by means of text messages / email)

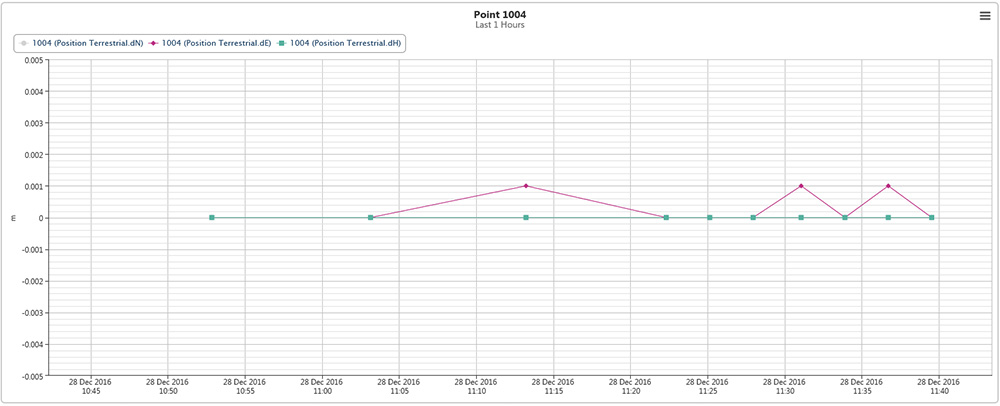

  • Online data presentation
  • Measurement accuracy < 0,5mm

Continuous monitoring of premises in Utrecht

Continuous monitoring of premises Utrecht During the replacement of camp sheeting (wooden sheet piling) in Utrecht, Geoservice B.V. installed a fully automatic Total Station. When the old camp shedding was removed and the new sheet piling was fitted, the adjacent quay and premises had to be monitored online 24/7. Measurement intervals were 30 minutes in this project with an accuracy below 2 mm.
  • Observe horizontal building relocations
  • Observe vertical building relocations
  • 1 fully automatic Total Station / continuous measuring system
  • Continuous monitoring of 50 prism reflectors
  • Automatic alerts (by means of text messages / email)
  • Online data presentation
  • Measurement accuracy < 2mm

Online monitoring of storage tanks at Vopak Netherlands

Online monitoring storage tanks Vopak Netherlands When the bottom of a storage tank had to be replaced, Geoservice B.V. implemented an automatic monitoring system in order to monitor the setting and relocations during the execution of the work 24/7. Measurement intervals in this project were 10 min.
  • Observe horizontal tank movements
  • Observe vertical tank movements
  • 2 Robotic Total Stations systems
  • Continuous monitoring of 30 prism reflectors
  • Automatic alerts (by means of text messages / email)
  • Online data presentation
  • Measurement accuracy < 1mm

Continuous monitoring at Javakade in Amsterdam

Continuous monitoring Amsterdam During the construction of the Jakarta Hotel in Amsterdam, Geoservice B.V. installed 2 fully automatic Total Stations. When the piling tub was fitted and removed for the underground car park, the adjacent quay and premises had to be monitored online 24/7. This meant that the fitted prism reflectors were measured every 30 minutes and could be accessed directly online.
  • Horizontal relocations of quay and premises
  • Vertical relocations of quay and premises
  • 2 fully automatic Total Stations / continuous measuring systems
  • Continuous monitoring of 80 prism reflectors
  • Automatic alerts (by means of text messages / email)
  • Online data presentation
  • Measurement accuracy < 2 mm

Online monitoring of wharf cellars at Nieuwe Gracht in Utrecht

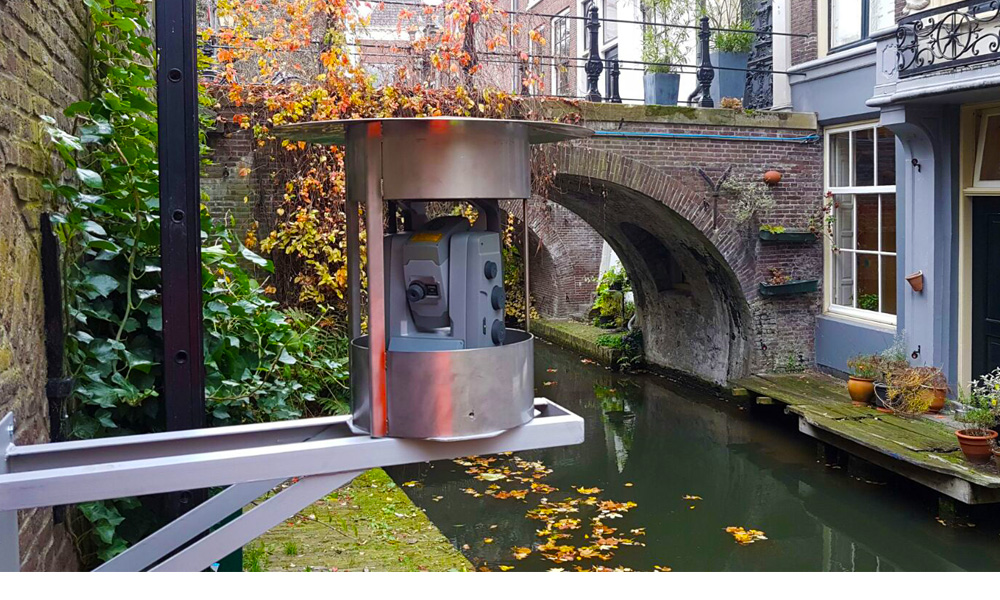

Online monitoring wharf cellars Utrecht During the renovation work at the quays of Nieuwe Gracht in Utrecht, Geoservice B.V. installed 6 fully automatic Total Stations. When excavations took place for the new sheet pile wall to be constructed, the adjacent historic wharf cellars on quay level had to be monitored online 24/7. This meant that the fitted prism reflectors were measured every 30 minutes and could be accessed directly online.
  • Horizontal relocation of wharf cellars
  • Vertical relocation of wharf cellars
  • 6 fully automatic Total Stations / continuous measuring systems
  • Continuous monitoring of 450 prism reflectors
  • Automatic alerts (by means of text messages / email)
  • Online data presentation
  • Measurement accuracy < 2mm

print_r('
Would you like more information about online monitoring or would you like a tour and explanation of one of our online monitoring projects? Then get in contact with us.
')
